XHHW101000 - Al XHHW 1/0 STR Black 1000'

Aluminum

$0.66 (Per Foot)
$0.66 (Per Foot)
$656.52 (Per 1,000 Feet)

Availability: Call for Availability

Buy Now

QTY:

Feet

Also in stock

$656.52Per 1,000 Feet

XHHW10PCS

Aluminum
Al XHHW 1/0 STR Black PCS

View Item or Compare

Overview
Reel Sizes
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: XHHW101000 Vendor Code ALU
Manufacturer: Aluminum
Manufacturer's Part Number: 11274801
Description: Al XHHW 1/0 STR Black 1000'
Aluminum Building Wire, 10 Strands, 1/0 Awg Conductor Size, Xlpe Insulation Material, Black, 1000 FT Overall Length, 449 Mil Outside Diameter, 80 Mil Insulation Thickness, +90 °C Operating Temperature, 134 LB/MFT
Slang Terms: Suggest a New Term
Categories: Aluminum Building Wire - XHHW-STR (Stranded) Mark as Incorrect
Suggest a New Category
Classification: Alum Building Wire
UNSPSC: 26121614 - Building cable
UPC/GTIN: 032886542268 / 00032886542268
Weight per unit: 0.132 (lbs/ft)

Price & Packaging

Minimum Order Quantity: Foot
Unit: $0.66 (Per Foot)
Reel: $656.52 (Per 1,000 Feet)

Resources

Attachments
: XHHW101000 - Specification Sheet
Images
: XHHW101000 - Small Image

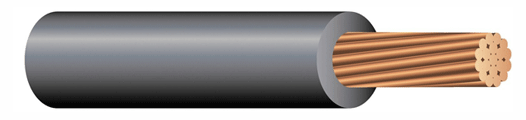

: XHHW101000 - Large Image
: XHHW101000 - Large Image

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Reel Sizes

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 100 A @ 60 °C;120 A @ 75 °C;135 A @ 90 °C
Stranding: 10 STRANDS
Conductor Size: 1/0 AWG
Voltage Rating: 600 V

Material, Color, and Finish

Conductor Material: Aluminum
Color: Black
Insulation Color: Black
Insulation Material: XLPE

Dimensions and Weight

Overall Length: 1000 ft
Length: 1000 ft
Outer Diameter: 446 Mil

Descriptions

Product Type: Aluminum Building Wire
Short Description: Aluminum Building Wire, 1/0 AWG, 600 V, XLPE Insulation
Long Description: Aluminum Building Wire, 10 Strands, 1/0 AWG Conductor Size, XLPE Insulation Material, Black, 1000 FT Overall Length, 449 mil Outside Diameter, 80 mil Insulation Thickness, +90 °C Operating Temperature, 134 lb/mft
Features: Southwire Type XHHW-2 conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code1 XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C Voltage rating for XHHW-2 conductors is 600 volts.
Additional Information: Moisture Resistant, High Heat Sun Light Resistant;Installed without Lubricant
Commodity Description: ALUMINUM BUILDING WIRE-XHHW-STR
extra long description: XHHW-2 TYPE; 1000 FT; 446 MIL OUTER DIAMETER; ALUMINUM ALLOY CONDUCTOR MATERIAL; UL 44 APPROVAL; 600 V VOLTAGE RATING; 100 AMPERE (60 DEG C), 120 AMPERE (75 DEG C), 135 AMPERE (90 DEG C) CURRENT RATING; 90 DEG C TEMPERATURE RATING; XLPE INSULATION MATERIAL; 1/0 AWG CONDUCTOR SIZE; REEL PACKAGE TYPE; 10 STRANDS STRANDING; BLACK INSULATION COLOR; ROHS COMPATIBLE; APPLICABLE STANDARD ASTM, FEDERAL SPECIFICATION A-A-59544, NFPA 70, NEMA WC-70
Description: AL XHHW 1/0 STR BLACK 1000'

Additional Information

Number of Strands: 10
outside diameter: 449 mil
Insulation Thickness: 80 mil
Maximum Operating Temperature: +90 °C
Standards Met: RoHS Compatible;Applicable Standard ASTM, Federal Specification A-A-59544,National Electrical Code, NFPA 70, NEMA WC-70;UL Listed 44
Made in USA: yes

Manufacturer Information

Brand: Aluminum
Manufacturers Part Number: 11274801
GTIN: 00032886542268
UPC: 032886542268

Taxonomies, Classifications, and Categories

Category Description: ALUM BUILDING WIRE
Type: XHHW-2

Packaging

Package Type: Reel
Weight: 134 lb/mft
Weight per foot: 0.132
Carton: 1000

Uses, Certifications, and Standards

Application: Conduit or Recognized Raceways for service and Feeder wiring and Branch Circuit Wiring
Temperature Rating: 90 DEG C
Approval: UL 44
