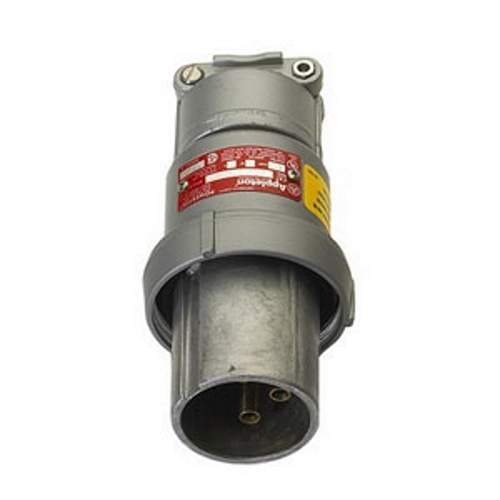

ACP3034BC - 30A 3W4P P&S Plug (600VAC/250VDC)

Availability: Call for Availability

Buy Now

QTY:

Each

$286.12Each

Crouse-Hinds
30A 3W 4P NEMA4X Pwrmate Plug

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: ACP3034BC Vendor Code APP
Manufacturer: Appleton
Manufacturer's Part Number: ACP3034BC
Description: 30A 3W4P P&S Plug (600VAC/250VDC)
Pin and Sleeve Plug, 30 A, 600 V Ac 3 Phase @ 50 to 400 HZ 250 V DC, 4 Poles, 3 Wires, Epoxy Powder Coated Copper Free Aluminum, -40 °C Operating Temperature, +107 °C Operating Temperature, Pressure Wire Terminal, #10 to #6 Awg (Building);#10 to #8 Awg (Extra Flex) Wire Size, 1.8 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Pin & Sleeve Devices Mark as Incorrect
Suggest a New Category
Classification: Pin & Sleeve Devices
UNSPSC: 39121402 - Electrical plugs
UPC/GTIN: 781381440424 / 00781381440424
Weight per unit: 1.8 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Descriptions

Product Type: Pin and Sleeve Plug
Description: 30A 3W4P P&S PLUG (600VAC/250VDC)
Long Description: Pin and Sleeve Plug, 30 A, 600 V ac 3 Phase @ 50 to 400 Hz 250 V dc, 4 Poles, 3 Wires, Epoxy Powder Coated Copper Free Aluminum, -40 °C Operating Temperature, +107 °C Operating Temperature, Pressure Wire Terminal, #10 to #6 AWG (Building);#10 to #8 AWG (Extra Flex) Wire Size, 1.8 lb
Features: Plug, positive polarized, clamping ring, compressor, motor generator unit, pump, welding type;epoxy powder coated copper-free aluminum material;0.5 inch min. cable outer diameter;1.25 inch max. cable outer diameter;3 wire(s).
Short Description: 60A Pin and Sleeve Plug, 600 VAC 3 Phase @ 50 to 400 Hz, 250 V dc, 4 Pole
extra long description: APP ACP3034BC 30AMP PLUG 3W-4P STYL
Special Features: Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus;Grounding style: Shell and extra pole;Ideal for use on shipping docks, ports and other ship to shore applications;Locking screw and slot prevents plug cable collar from backing off;Natural finish glass filled polyester insulating blocks;Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle;

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +107 °C
for use with: Shipping Docks;Ports
Standards Met: UL 1682;UL 1686;UL 50E;UL Listed:E145916;E145917;CSA Standard:C22.2 NO. 182.1;CSA Certified:065179;NEMA FB11

Manufacturer Information

Taxonomies, Classifications, and Categories

Packaging

Uses, Certifications, and Standards

nema rating: NEMA 3;3R;4;4X
standard: CSA Certified: 065179;CSA Standard: C22.2 No. 182.1;NEMA FB11;UL 1682, UL 1686, UL 50E;UL Listed: E145916, E145917
Application: For ADR3034 Receptacle And ARC3034BC Connector Body
environmental conditions: Temperature Rating: -40 To 107 DEG C
