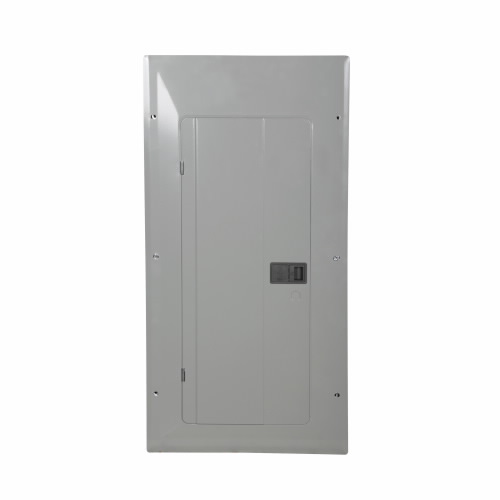

BR3040L200G - 30/40C 200A 1PH Mlo Loadcenter

Eaton

$314.85 (Each)
$314.85 (Each)

Availability: Currently Out Of Stock

Buy Now

QTY:

Each

Also in stock

$271.40Each

BRP30L200

Eaton Corp
BR Pon Loadcntr 200A Mlo 30 Space

View Item or Compare

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: BR3040L200G Vendor Code ETN
Manufacturer: Eaton
Manufacturer's Part Number: BR3040L200G
Description: 30/40C 200A 1PH Mlo Loadcenter
Main Lug Load Center, 30 Spaces, 40 Circuits, 200 A, 120/240 V Ac, #1 Awg to 300 Kcmil Wire Size, Metallic Material, Aluminum Bus Material, 14.31 In Overall Length, 3.88 In Overall Width, 29.13 In Overall Height
Slang Terms: Suggest a New Term
Categories: Load Centers & Accessories - Single Phase Main Lug Load Cen Mark as Incorrect
Suggest a New Category
Classification: Loadcenters & Covers
UNSPSC: 39121101 - Load centers
UPC/GTIN: 786676003506 / 00786676003506
Weight per unit: 28.4 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $314.85 (Each)

Resources

Images
: BR3040L200G - Small Image
: BR3040L200G - Large Image
: BR3040L200G - Large Image
Other Links
: BR3040L200G - Other
: BR3040L200G - Other
Brochures
: BR3040L200G - Brochure
Attachments
: BR3040L200G - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Wire Size: #1 AWG to 300 kcmil
Current Rating: 200 A
Voltage Rating: 120/240 V ac
Material: Metallic
interrupt rating: 25 kAIC
Phase: 1 PH
amperage rating: 59120
Cover Type: Cover included
Number of Wires: Three-wire
used with: Type BR 1-inch breakers

Material, Color, and Finish

Bus Material: Aluminum
Enclosure Material: Metallic

Dimensions and Weight

Overall Length: 14.31 in;363.5 mm
Size: F3003/4 YL105

Descriptions

Description: 30/40C 200A 1PH MLO LOADCENTER
extra long description: ETN BR3040L200G BR style 1-inch loa
Product Type: Main Lug Load Center
Long Description: Main Lug Load Center, 30 Spaces, 40 Circuits, 200 A, 120/240 V ac, #1 AWG to 300 kcmil Wire Size, Metallic Material, Aluminum Bus Material, 14.31 in Overall Length, 3.88 in Overall Width, 29.13 in Overall Height
Features: Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Short Description: NEMA 1 Main Lug Load Center, 30/40 C, 200 A, Ground Bar
Special Features: Ground bar

Additional Information

Enclosure Type: Nema 1
for use with: Type Br 1-Inch Breakers
number of spaces: 30
Number of Circuits: 40
Overall Width: 3.88 in;98.4 mm
Overall Height: 29.13 in;739.8 mm
Circuit Breaker Compatibility: BR Circuit Breaker
Recommended Environment: Indoor
Standards Met: UL 67 Listed;UL 50 Listed
Made in USA: yes
dimensions: 98.5520millimetreX36.3474centimetreX73.9902centimetre
main circuit breaker: BWH
cover: Cover included
Box Size: LIGHTING TRACK, MINIATURE TYPE; EXTRUDED ALUMINUM MATERIAL; SATIN WHITE FINISH; 90-5/8 INCH; 1-3/8 INCH; 11/16 INCH; 8 FT NOMINAL LENGTH; UL, CSA APPROVAL; 20 AMPERE CURRENT RATING; 2 CIRCUIT(S); HALO[R], POWER-TRAC BRAND; WALL THICKNESS 0.06 INCH

Manufacturer Information

Brand: Eaton Corp; Viton(R)
Manufacturers Part Number: BR3040L200G
GTIN: 00786676003506
UPC: 786676003506

Taxonomies, Classifications, and Categories

Category Description: LOADCENTERS & COVERS
unspsc code: 39121101
Type: MAIN LUG
igcc: PLUG, NON POLARIZED TYPE; THERMOPLASTIC MATERIAL; WHITE COLOR; 1-15P CONFIGURATION; UL 1706, CSA APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; IMPACT RESISTANT; (2) 18 AWG CORD SIZE; HOMESELECT[T] BRAND

Packaging

Weight per each: 28.4
Carton: 1

Uses, Certifications, and Standards

Application: Power Distribution
Mounting: Combination
Enclosure: NEMA 1
standard: UL 67;UL 50

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of BR3040L200G.

Jump to:
Cross Referenced

Jump To:

Cross Referenced

These items are similar to BR3040L200G but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
BR3040L200	Eaton	00786676447652
BR3040L200G	Eaton	00786676003506
CUHBR3040L20	Eaton	n/a
5B691	WW GRAINGER	n/a
G3040L1200	ITE	n/a
G3040ML1200	ITE	n/a
HOM3040L200TC	Schneider Electric	00785901209003
G3040MC1200	Siemens	n/a
P3040L1200	Siemens	00040892650457
