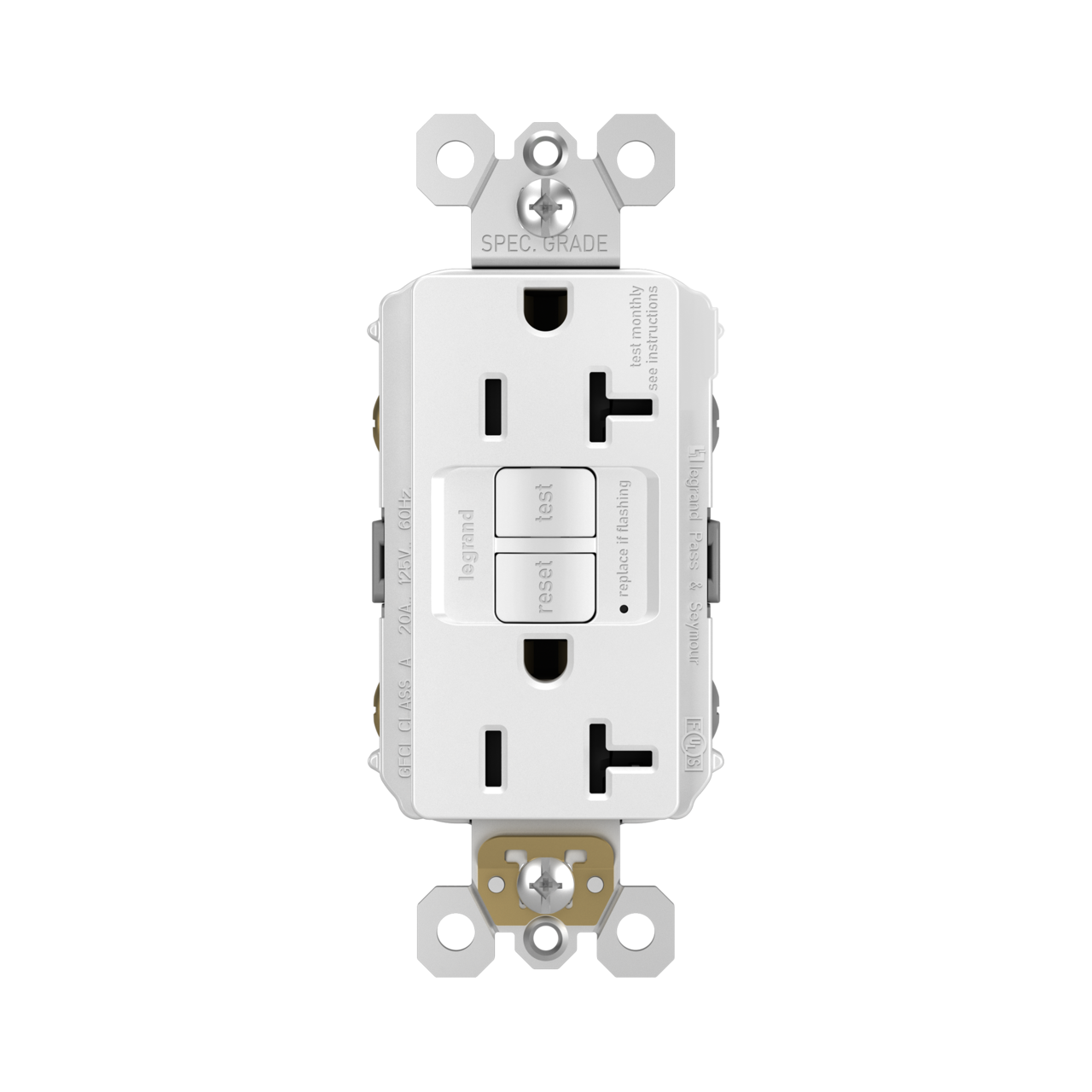

2097W - Radiant Self Test Gfci 20A 125V WH

Legrand-Pass & Seymour

$23.80 (Each)
$23.80 (Each)
$238.00 (Per 10)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Help Improve Our Data

Quick Specs

Catalog Number: 2097W Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 2097W
Description: Radiant Self Test Gfci 20A 125V WH
Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 Awg Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 HZ, 1.73 In Width, 4.20 In Height, Thermoplatic Material, White, 0.025 Sec Trip Time, 0.2800 LB
Slang Terms
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Classification: Residential Gfci Devices
UNSPSC: 39121406 - Electrical receptacles
UPC/EAN/GTIN: 785007035926 / 0785007035926 / 00785007035926
Weight per unit: 0.275 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $23.80 (Each)
Standard Packaging: $238.00 (Per 10)

Resources

Images
: 2097W - Large Image
: 2097W - Large Image
: 2097W - Large Image
: 2097W - Large Image
: 2097W - Large Image
: 2097W - Small Image
: 2097W - Large Image
: 2097W - Large Image
: 2097W - Video
Brochures
: 2097W - Brochure
Other Links
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other
: 2097W - Other

Help Improve Our Data

Specifications

Help Improve Our Data

Features

Current Rating: 20 A
Material: Thermoplatic
Number of Gangs: 1.0
Voltage Rating: 125
Poles: 2
amperage rating: 20
interrupt rating: 4 to 6 mA
connection: Back and side wire
actuator: Control Circuit

Material, Color, and Finish

Color: White
Finish: Matte

Dimensions and Weight

Height: 4.20 in
Length: 1.03
Width: 1.73

Descriptions

Product Type: Self-Test Duplex Receptacle
Long Description: Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplatic Material, White, 0.025 sec Trip Time, 0.2800 lb
Features: The radiant(R) collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock(TM) Protection feature: if critical components are damaged and protection is lost, po
Short Description: 20 A, 125 V, Self-Test Duplex Receptacle, White, GFCI, TR, 3 Wires
Special Features: 10 kA Short Circuit Rating;20 Amp Feed-Thru Capacity
Description: RADIANT SELF TEST GFCI 20A 125V WH
extra long description: P&S 2097W RADIANT SELF TEST GFCI 20

Additional Information

Receptacle Type: Self Test Duplex
Compatible Wire Size: #14 to #10 AWG
actuator type: Control Circuit
Connection Type: Back and Side Wired
Trip Time: 0.025 sec
package quantity: 1 CT;10 PK
Standards Met: cULus Listed;UL Listed;fsUL Listed;UL 94 v2;UL498;Federal Specifications
Trip Type: .025 Second Nominal
Voltage: 125.0 V
trip range: 4 to 6 mA
Mounting Type: Box
indoor/outdoor: Indoor
Outlet Type: Self-Test, GFCI
media: Yes

Manufacturer Information

Brand: Pass & Seymour
Manufacturers Part Number: 2097W
GTIN: 00785007035926
UPC: 785007035926

Taxonomies, Classifications, and Categories

Category Description: Residential GFCI devices
Type: Outlet

Trade Size

Amperage: 20.0

Packaging

Weight: 0.2800 lb
Weight per each: 0.275
Carton: 1
Package: 10

Uses, Certifications, and Standards

nema rating: 5-15R
Frequency Rating: 60 Hz
Application: Residential;Commercial
Operating Temperature: -35°C to +66°C
environmental conditions: 95% Humidity, UL 94 V2
standard: CULUS, UL
