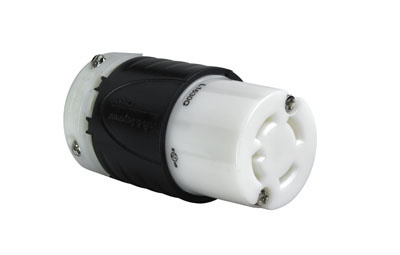

L1630C - Turnlok Connector 4W 30A 3P 480V

Legrand-Pass & Seymour

$109.84 (Each)
$109.84 (Each)
$1,098.44 (Per 10)
$10,984.38 (Per 100)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: L1630C Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: L1630C
Description: Turnlok Connector 4W 30A 3P 480V
Locking Device Turnlock Connector, 30 A, 480 V, 2 Poles, 3 Wires, Black/White, Nylon Material, -40 °C Operating Temperature, +75 °C Operating Temperature, 2.20 In;0.225 to 1.150 In (Cord) Diameter, 3.3 In Length, #18 to #8 Awg Wire Size, Impact and Corrosion Resistant, 0.4 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Industrial Cord Connectors
UNSPSC: 39121403 - Locking plug
UPC/GTIN: 785007163018 / 00785007163018
Weight per unit: 0.402 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $109.84 (Each)
Carton: $109.84 (Each)
Standard Packaging: $1,098.44 (Per 10)

Resources

Other Links
: L1630C - Other
: L1630C - Other
: L1630C - Other
: L1630C - Other
: L1630C - Other
Images
: L1630C - Large Image
: L1630C - Small Image
: L1630C - Large Image
Brochures
: L1630C - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 30 A
Number of Wires: 3
Material: Nylon
Wire Size: #18 to #8 AWG
Poles: 2
amperage rating: 30
Voltage Rating: 480

Material, Color, and Finish

Color: Black&White

Dimensions and Weight

Diameter: 2.20 in;0.225 to 1.150 in (Cord)
Length: 3.3 in
Size: 3.3 in

Descriptions

Product Type: Locking Device Turnlock Connector
Long Description: Locking Device Turnlock Connector, 30 A, 480 V, 2 Poles, 3 Wires, Black/White, Nylon Material, -40 °C Operating Temperature, +75 °C Operating Temperature, 2.20 in;0.225 to 1.150 in (Cord) Diameter, 3.3 in Length, #18 to #8 AWG Wire Size, Impact and Corrosion Resistant, 0.4 lb
Features: Turnlok Connector 4wire 30amp 3phase 480v
Short Description: 30 A, 480 V, Locking Device Turnlock Connector, Black/White
Special Features: Excellent Conductivity;Double Dovetail Design
Description: TURNLOK CONNECTOR 4W 30A 3P 480V
extra long description: P&S L1630C TURNLOK CONNECTOR 4W 30A

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +75 °C
Resistance Properties: Impact;Corrosion Resistant
package quantity: 1 CT;10 PK
Standards Met: RoHS Compliant;UL Listed File Number E146159 Standard UL498;CSA Certified File Number LR1765, Standard CSA-C22.2 No. 42

Manufacturer Information

Brand: Pass and Seymour
Manufacturers Part Number: L1630C
GTIN: 00785007163018
UPC: 785007163018

Taxonomies, Classifications, and Categories

Category Description: Industrial cord connectors
Type: Turnlock Connector

Packaging

Weight: 0.4 lb
Weight per each: 0.402
Carton: 1
Package: 10

Uses, Certifications, and Standards

Application: Industrial
nema rating: L16-30R
Mounting: Connector
standard: UL 498
