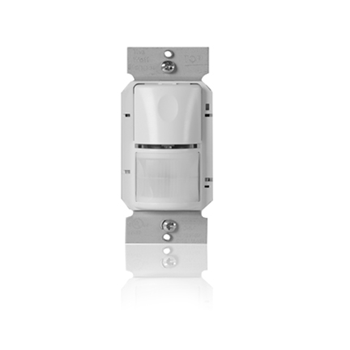

WS250W - Pir Wall SWTCH Occsnsr, 120/277V, W

Wattstopper

$63.16 (Each)
$63.16 (Each)
$2,526.40 (Per 40)

Availability: In Stock Locally

Buy Now

QTY:

Each

Also in stock

$44.28Each

MS0PS6M2DVWH

Lutron
Maestro DV 6A Occupancy 3WAY White

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: WS250W Vendor Code PAS
Manufacturer: Wattstopper
Manufacturer's Part Number: WS-250-W
Description: Pir Wall SWTCH Occsnsr, 120/277V, W
Wall Switch Decorator Sensor, 120/277 V Ac, 800 W (120 V Ac);1200 W (277 V Ac), 35 X 30 FT (Major);20 X 15 FT (Minor) Coverage, Auto-Off Switch, 30 Sec to 30 Min Time Delay, 1.7 In Length, 1.55 In Width, 2.6 In Height, White, 5 Yr Warranty
Slang Terms: Suggest a New Term
Categories: Lighting Occupancy Sensors & M - Lighting Occupancy Sensors Mark as Incorrect
Suggest a New Category
Classification: Residential Dimmers, Motion Sensors, Controls, & Photo Cells
UNSPSC: -
UPC/EAN/GTIN: 75418292306
Weight per unit: 0

Price & Packaging

Minimum Order Quantity: 1
Unit: $63.16 (Each)
Standard Packaging: $2,526.40 (Per 40)

Resources

Images
: WS250W - Small Image
: WS250W - Large Image
: WS250W - Large Image
Attachments
: WS250W - Specification Sheet
Installation Sheets
: WS250W - Installation Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Voltage Rating: 120/277 V ac
Terminal Type: 6 Inch Flying Lead

Material, Color, and Finish

Color: White
Finish: white

Dimensions and Weight

Height: 2.6 in;66 mm
Length: 1.7 in;43.1 mm
Width: 1.55 in;39.4 mm
Size: 2.6 Inch Length x 1.7 Inch Width x 1.55 Inch Depth

Descriptions

extra long description: SENSOR WITH RELAY TYPE; 2.6 INCH LENGTH X 1.7 INCH WIDTH X 1.55 INCH DEPTH SIZE; WHITE FINISH; UL, CUL APPROVAL; OFFICE, CONFERENCE ROOM, BREAK ROOM, UTILITY ROOM APPLICATION; 120/277 VOLT AC AT 60 HERTZ VOLTAGE RATING; WALL MOUNTING; 6 INCH FLYING LEAD TERMINAL TYPE; 0 TO 800 WATT AT 120 VOLT AC (BALLAST/TUNGSTEN), 1/6 HP, 0 TO 1200 WATT AT 277 VOLT AC (BALLAST) LOAD RATING; 180 DEGREE FIELD OF VIEW; DECORATOR (NOT INCLUDED) WALL PLATE TYPE; PASSIVE INFRARED SENSOR TYPE; 1000 SQUARE FOOT OR 20 FOOT X 15 F
Product Type: Wall Switch Decorator Sensor
Long Description: Wall Switch Decorator Sensor, 120/277 V ac, 800 W (120 V ac);1200 W (277 V ac), 35 x 30 ft (Major);20 x 15 ft (Minor) Coverage, Auto-Off Switch, 30 sec to 30 min Time Delay, 1.7 in Length, 1.55 in Width, 2.6 in Height, White, 5 yr Warranty
Features: The WS-250 Passive Infrared (PIR) Wall Switch Sensor turns lighting on and off based on occupancy and ambient light level. It replaces existing wall switches and fits behind a standard decorator wall plate.The WS-250 utilizes advanced PIR technology to detect occupancy. Detection occurs when the WS-250 senses the difference between infrared energy from a human body in motion and the background space. Lighting automatically turns on when occupancy is detected. After a user-specified length of time when no o
Short Description: Wall Switch Decorator Sensor, 120;277 VAC, White, 35 x 30 ft (Major);20 x 15 ft (Minor) Coverage
Description: PIR WALL SWTCH OCCSNSR, 120/277V, W
Additional Information: Light Level Setting 2 to 200 Foot Candle
Commodity Description: LIGHTING OCCUPANCY SENSORS

Additional Information

Power Rating: 800 W (120 V ac);1200 W (277 V ac)
coverage: 35 x 30 ft (Major);20 x 15 ft (Minor)
Switch Type: Auto-Off Switch
Time Delay: 30 sec to 30 min
Warranty: 5 yr
package quantity: 1 ct
Load Rating: 0 to 800 Watt at 120 Volt AC (Ballast/Tungsten), 1/6 HP, 0 to 1200 Watt at 277 Volt AC (Ballast)
Area Coverage: 1000 Square Foot or 20 Foot x 15 Foot (Minor Motion), 35 Foot x 30 Foot per Box (Major Motion)
Field of View: 180 Degree
Load Type: Ballast/Tungsten/LED Driver
Wall Plate Type: DECORATOR (NOT INCLUDED)
Sensor Type: PASSIVE INFRARED
