RL560WH6935 - Delisted 6" Led Retro 35K 600LM 90cri

Halo

$31.64 (Each)
$31.64 (Each)

Availability: Call for Availability

Buy Now

QTY:

Each

EES Spec Sheet
MFR Spec Sheet
Suggest Changes
This item is currently unavailable from the manufaturer

Also in stock

$26.99Each

RL56069FSD2W1EWH

Cooper Lighting Solutions
6" 7W Led Retro 27K/3K/35K/4K/5K Dim to Warm 600LM

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: RL560WH6935 Vendor Code ETL
Manufacturer: Halo
Manufacturer's Part Number: RL560WH6935
Description: *Delisted* 6" Led Retro 35K 600LM 90cri

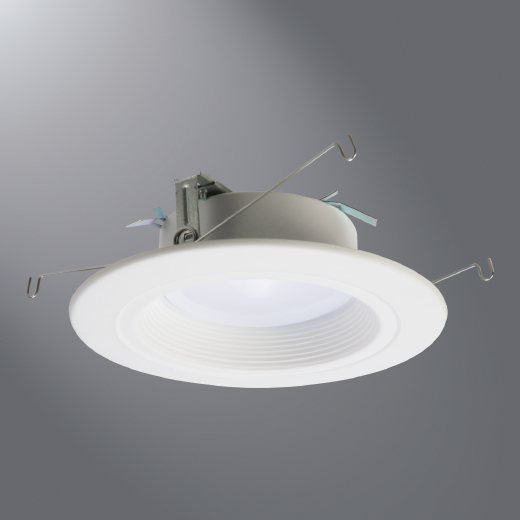

Led Baffle-Trim Module, 120 V, 0.15 A, 9 W, E26 Base, Steel;Aluminum, White;Satin Nickel;Tuscan Bronze, White, 3500 K, 90, 50000 H Average Life, Dimmable, 600 LM Brightness (Lumens), 2.33 In Height, 7.25 In Diameter, 2 LB
Slang Terms: Suggest a New Term
Categories: Led Architectural & Specificat - Led Recessed Architectural & S Mark as Incorrect
Suggest a New Category
Classification: Led Architectural & Specification Lighting
UNSPSC: 39111505 - Recessed lighting
UPC/GTIN: 080083690626 / 00080083690626
Weight per unit: 2 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $31.64 (Each)

Resources

Images
: RL560WH6935 - Video
: RL560WH6935 - Small Image
: RL560WH6935 - Large Image
: RL560WH6935 - Large Image
: RL560WH6935 - Large Image
Other Links
: RL560WH6935 - Other
: RL560WH6935 - Other
Attachments
: RL560WH6935 - Specification Sheet
: RL560WH6935 - Specification Sheet
Brochures
: RL560WH6935 - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 0.15 A
Material: Steel;Aluminum
Wattage: 9
Lamp Type: LED
Ballast Type: N/A
amperage rating: 0.15 (at 120V)
Number of Lamps: 1
Voltage Rating: 120

Material, Color, and Finish

Base Type: E26
Finish: White;Satin Nickel;Tuscan Bronze
Color: White
color temperature: 3500 k
Color Rendering Index: 90
fixture material: Aluminum/Polycarbonate
Style: (blank)

Dimensions and Weight

Height: 2.33 in;59.22 mm
Diameter: 7.25 in;184.15 mm

Descriptions

Description: 6" LED RETRO 35K 600LM 90CRI
Product Type: LED Baffle-Trim Module
Long Description: LED Baffle-Trim Module, 120 V, 0.15 A, 9 W, E26 Base, Steel;Aluminum, White;Satin Nickel;Tuscan Bronze, White, 3500 K, 90, 50000 h Average Life, Dimmable, 600 lm Brightness (Lumens), 2.33 in Height, 7.25 in Diameter, 2 lb
Features: The Halo RL56 Series is a complete LED Baffle-Trim Module for 5” and 6” aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, All-Pro, and other compatible 5” and 6” housings. The integral LED driver offers 120 volt dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing AIR-TITE(TM) for added HVAC savings and code compliance. Compliant with NFPA(R) 70, NEC(R) Section 41
Short Description: LED Baffle-Trim Module, 120 V, 9 W
extra long description: ETNCL RL560WH6935 HALO RL56 WH 600L
Special Features: ENERGY STAR® certified

Additional Information

Total Wattage: 9 W
Brightness (Lumens): 600 lm
average life: 50000 h
dimmable: Yes
includes: 5 or 6 in Housing;Screwbase Adapter
ip rating: IP56
Standards Met: ECCN:EAR99NLR;UL/cUL 1598 Listed;RoHS Compliant
package quantity: 25 CT
media: Yes

Manufacturer Information

Brand: Cooper Halo
Manufacturers Part Number: RL560WH6935
sub brand: RL56 Series
GTIN: 00080083690626
UPC: 080083690626

Taxonomies, Classifications, and Categories

Category Description: LED ARCHITECTURAL & SPECIFICATION LIGHTING
Type: RL56 LED

Availability

Manufacturer Status: Inactive

Packaging

Weight: 2 lb
Weight per each: 2
Carton: 1

Uses, Certifications, and Standards

Application: lighting
Energy Star: yes
standard: cULus Listed - Damp Location;cULus Listed - Wet Location;UL/cUL Listed 1598 Luminaire;IP56 Rated;AIR-TITE (TM) Certified ASTM E283;California Title 20;California Title 24;IECC Compliant;Energy Star Certified;EMI/RFI per FCC 47CFR Part 15 B;RoHS Compliant
Mounting: Flushmount
